Werkzeugschleifmaschine
2500.00 €
Verhandlungsbasis
| Zustand | gebraucht |
|---|---|
| Hersteller | IFM |
| Standort | 07381 Thüringen - Pössneck |
Beschreibung
Beschreibung
Description:
Machine base from Murahashi/Japan but heavily modified and upgraded to manufacture PCD-inserts: High precision hydraulic oszillation of table, stereo microscope for optical setting up of workpieces and radius grinding. Laser module for perfect alignment of spindle. With coolant, pump, tank. All slideways and bearings new and without backlash. Machine also suitable for insert grinding, cutter resharpening or any precision grinding jobs. Travel X/Y/Z: 180mm/160mm/150mm
Pic1 Machine

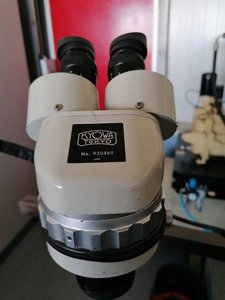

Pic2 Kyowa stereo microscope for optical setting, zeroing, radius grinding, quality control

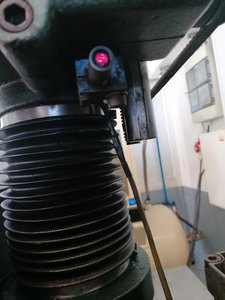

Pic3 Laser module for precise alignment of spindle parallel to x-oszillation

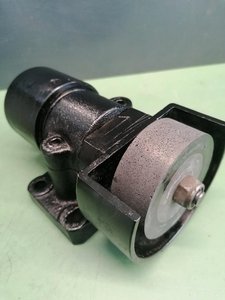

Pic4 Dressing brake with diamond impregnated dressing wheel

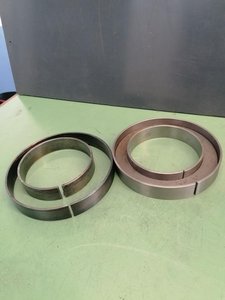

Pic5 Molds for manufacture diamond impregnated grinding wheels to grind PCD
Pic6 In-house manufactured grinding wheels to grind PCD
Pic7 Balancing device
Pic8 Manual driven rotational axis with tilt
Pic9 Main fixture for insert grinding and radius grinding
Pic10 Electric driven rotational axis with tilt for cleatance angle
Pic11 PCD ring mounted on pin ready for grinding
Pic12 PCD inserts popular in the aluminium wheel industry
Pic13 Spark eroded cartridges to for all standard and many special inserts
Pic14 Different TC inserts, many Mapal bodies
Pic15 PCD inserts, samles or not sold
Pic16 PCD blanks, many popular sizes
Pic17 PCD blanks, many popular sizes
Pic18 9000 carats diamond grit for resin bond, 55% nickel clad, D46=325/400 mesh, highly friable for grinding PCD
Machine must go. Any reasonable payment will be accepted.
The machine is a real marvel, high precision hydraulic oszillation, stereo microscope for optical setting up of workpieces and radius grinding. All slideways and bearings new and without backlash. Machine suitable for insert grinding, cutter resharpening or any precision grinding jobs.
I struggle to find a buyer in Germany and think this machine should go to Easter Europe or the Balkans where people still must work to make a living.
Can anybody help establishing contact?
---
